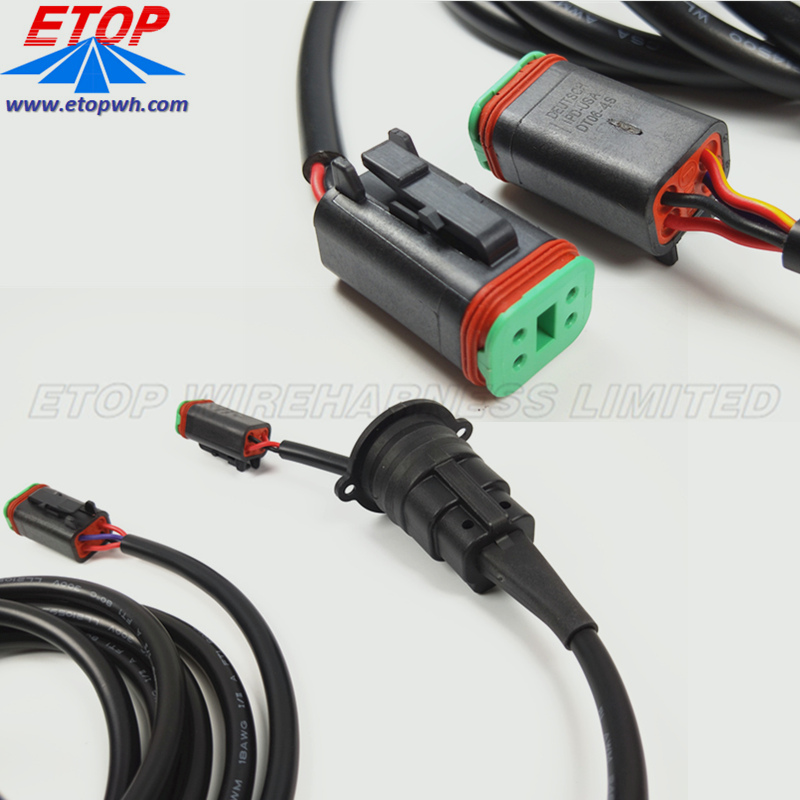

Custom Waterproof Wiring Harness With DT Plug

  • Custom Waterproof Wiring Harness With DT Plug
  • Custom Waterproof Wiring Harness With DT Plug
  • Custom Waterproof Wiring Harness With DT Plug
  • Custom Waterproof Wiring Harness With DT Plug

Custom Waterproof Wiring Harness With DT Plug

    Packaging: Standard neutral packing
    Productivity: 5000pcs/day
    Brand: OEM,ODM
    Transportation: Ocean,Land,Air
    Place of Origin: CHINA
    Supply Ability: 30K~50K/M
    Certificate: IATF16949, UL, ISO9001
    HS Code: 8544422100
    Port: HK,SZ

Basic Info

Model No.: ETOP-2015

Product Description

Custom Waterproof Wiring Harness With DT Plug

Source manufacturers, support customization, quality assurance. We have many advantages for you to choose our products. Our products meet the national standard, customized on demand, temperature-resistant and flame-retardant. Various wiring harness terminals are connected to electronic wires, customized by processing manufacturers, and connected to electronic wiring harnesses. We are specialized in the production and sales of board-to-board machine internal connection wiring harnesses, terminal wiring harnesses, industrial control wiring harnesses, medical wiring harnesses, automotive wiring harnesses, LED lighting wiring harnesses, Various types of wiring harnesses such as security monitoring, new energy, digital products, electrical appliances, etc., professionally solve wiring harness solutions for various industries.

DT plug wire harness Customization

DT, DTM, and DTP series environmentally sealed connectors are designed for cable to cable and cable to board applications. The DT connectors are used in harsh environment applications where even a small degradation in connection may be critical. Thermoplastic housings offer a wide operating temperature range and silicone rear wire and interface seals allow the connectors to withstand conditions of extreme temperature and moisture. The DT series general purpose connectors will provide reliability and performance on the engine or transmission, under the hood, on the chassis, or in the cab.


DT connectors of WIRE SEALING RANGE

The wire sealing range is the recommended outside diameter of the wire insulation required to maintain an environmental seal in the rear connector cavities.

Contact Size Standard Seal Extra Thin Seal E-Seal
20 14-22 AWG (2.5-0.35mm2) .053-.120 (1.35-3.05) --
16 14-20 AWG (2.0-0.5mm2) .088-.145 (2.23-3.68) .053-.120 (1.35-3.05)
12 10-14 AWG (6.0-2.0mm2) .134-.170 (3.40-4.32) .097-.158 (2.46-4.01)

plastic grommet cable



Overmold Customization

Custom overmolded DT connectors can be designed to meet most applications, typical designs allow the following features to be specified:

Material Compounds (PVC, Thermoplastic Elastomers (Santoprene, Uniprene, etc.);

Material Durometer and color;

IP Rating against Dust/Dirt/Moisture;

Ergonomic and Style Factors;

Mating Force of terminals and molded connectors;

Keying Features to control Mating;

Temperature Requirements;

Terminals and Terminal Plating;

Amperage Rating and Allowable Gage Ranges of Wires in the Connector

grommet cable

Product Name custom overmolded DT connector and waterproofing DT04-2P wire harness
Keywords

auto DT wiring harness, DT plug housing wiring, auto wiring harness

Cable color Per customer requirements
Cable Length Per customer requirements
Application Car, Truck, Bus, & Off-Road
Connector type automotive connectors
Suitable Wire Gauge(terminals) #14~20
Protection overmolding
Quality Certificate ISO9001, IATF16949, ROHS, UL,SGS, REACH, IPC620
Performance Test: 100% terminal inspection & 100% electric testing & 100% FQC & AQL=0.65


deutsch-DT-assembly-1



Custom cable assemblies Engineering Services & Support

DT Series

• Accepts contact size 16 (13 amps)

• 14-20 AWG (2.00-0.50 mm2)

• 2, 3, 4, 6, 8, and 12 cavity arrangements

• In-line, flange, or PCB mount

• Rectangular, thermoplastic housing

• Integrated latch for mating

• Wedgelocks confirm contact alignment and retention

DT housing cabling


custom DT cable


Custom cable assemblies Engineering Services & Support

We have developed a tradition of high-tech engineering, prototyping, and quality custom cable manufacturing at very competitive pricing. Also with professional flow chart (wire cutting-stripping-copper twisting-crimping-crimping 100% inspection-soldering-molding-asssembling.

Products

ETOP's engineering team can provide valuable input throughout each stage of your project. Whether you're adapting an existing design to production, or trying to solve a unique problem, we've got the engineering, CAD, and machining expertise to help! we’ve been manufacturing high-quality cable assemblies for a wide spectrum of industries including but not limited to the automotive, industry, mechanical, military, medical, computer, electronics and telecommunications industries, as well as the federal government and other industrial business sectors.


ETOP WIREHARNESS Core strength

WIRE HARNESS CORE STRENGTH

WIRE HARNESS CORE STRENGTH2


ETOP WIREHARNESS LIMITED

 ETOP WIREHARNESS LIMITED is an IATF-16949 and UL certified wiring assembly manufacturer, also the company is an R&D and manufacturing base of extensive wire harness and connectors. Located in Dongguan, Guangdong with a plant area reaching 13,000 m2 and 230~350 employess.

Most of our customers are OEMs or ODMs in USA, Germany, Japan, Australia, Sweden, etc. ETOP has their special sampling production line, also with fully-equipped internal tooling department for SR, connector, plastic part, or any other tooling parts efficiently. And our dedicated team can support customers with much more suggestions and techinics for developing their new products. All these can help customers shorten the L/T a lot with most competitive tooling and sampling cost.

The main advantages of ETOP is to provide harness design assistance, rapid in-house prototyping(CAD, SOLIDWORK), manufacturing engineering, tool making, also accept flexible Qty,even including working round-the-clock to meet tight turning-round time requirements. Customer satisfaction is always our top priority.

With more than ten years of experience and capabilities assisting our customers in various industry, ETOP would be confident to be your qualified AVL and reliable manufacturing partner. Just be free to contact us if you need any wire-harness solutions or partner for your products. Our professional and experienced team would support you by satisfied skill and service.
