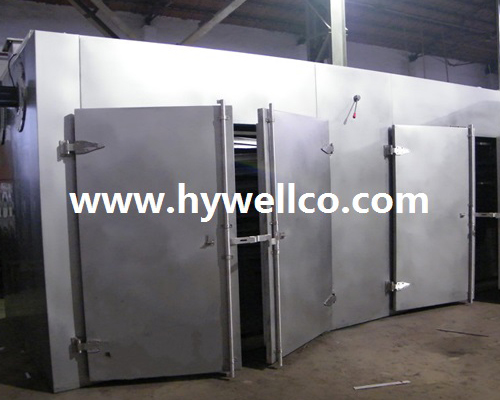

Hot Air Drier Machine
|Payment Type:||L/C,T/T,Western Union|
|Terms of Trade:||FOB|
|Min. Order:||1 Set/Sets|
|Delivery Time:||30 Days|
|Productivity:||10-20 Set per Year|
|Place of Origin:||China (Mainland)|
|Supply Ability:||5-10 Set/Sets per Month|
Model No.: CT-C
Hot Air Drier Machine Features:
1. Hot Air Dryer use steam pressure 0.2-0.8MPa(2-8 bar).
2. For CT-C-I of Air Circulating Oven , electric heated, rated power consumption:15kW, real consumption : 5-8kW/h.
3. The special requirements of Hot Air Drying Machine should be indicated at the time of order.
4. For operation temperature of over 140˚C or less than 60˚C, please indicate when order.
5. The ovens and baking trays made by our factory are standard in dimensions, and can be exchanged each other.
6. Baking plate dimensions: 460x640x45mm.
CT-C series Hot Air Drier is equipped with low noise axial flow fan and automatic temperature control system.
The circle system is fully sealed, making the hot efficiency increased from 3-7% of traditional oven to 35-45%, even up to the maximum hot efficiency of 70%. The successful design of CT-C series hot air circulation drier makes the hot air circle oven catch up the advanced level both at home and abroad.
Most of hot air is circled inside the dry oven, thus rendering hot efficiency very high and saving energy source. It is applied to intensify ventilation and equipped in the adjustable air distributing plate inside the dry oven. And Food Dryer Equipment can use dried raw material and heat source, involving steam, hot water, electricity or far infrared. This machine features low noise and stable operation, with automatically controlled temperature. The applied fields are wide and can be suitable for all kinds of raw materials. It is a comprehensive.
Advantage 2. The heating source might be steam, hot water, electricity and far infrared, with a wide selection. 3. The whole machine is low in the noise. The operation is in balance. 4. The temperature is controlled automatically. The installation and maintenance are easy. The application is wide. 5. The machine can be used for drying various materials. Application Optional Choices 5. If without heating system , it can as a cooler to make particle with cooling air.
1. Most hot air is circulated in the oven. The heat efficiency is high and the energy is saved. By using the forced ventilating function, there are adjustable air distribution plates inside the oven, the materials can be dried uniformly.
This drying oven is suitable for material and product hot solidification and dry de-watering in the pharmaceutical, chemical, food, farming side-product, aquatic product, light industries, heavy industries and others industries. Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, dewatering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc.
1. For the main electrical components , we have international brand choices such as ABB , Siemens or Schneider or others.
2. For the material for the machine , we have choices on AISISUS304 , AISISUS316L,carbon steel and so on .
3. For the control system , we have choices on push button, PLC+HMI and so on .
4. For the heating system for the machine , it is very flexible. we can configure it based on the customer site conditions ,such as steam ,electricity.
2. The heating source might be steam, hot water, electricity and far infrared, with a wide selection.
3. The whole machine is low in the noise. The operation is in balance.
4. The temperature is controlled automatically. The installation and maintenance are easy. The application is wide.
5. The machine can be used for drying various materials.
5. If without heating system , it can as a cooler to make particle with cooling air.
|Industry standard||Specification standard||Drying weight per batch (Kg)||Power (Kw)||Steam consumption (Kg/h)||Evaporation area (m2)||Air capacity (m3 /h)||Temperature error||Baking plate||Overall dimension (LxWxH) mm||Baking cart (set)|
|It also design and manufacture base customer require. Welcome to contact us!|| |
Hywell Machinery is a professional manufacturer of industrial drying machine, mixing machine and granulating machine. Our flagship products include the hot air dryer, vibration fluid bed dryer, belt dryer, vacuum dryer, one dimensional mixer, two dimensional mixer, three dimensional mixer, and high speed granulator and so on. These high-performance machines have extensive applications within industries such as food, medicine and chemical. Sustained development and a strong emphasis on research and technology have bolstered our quality standards. we seek to achieve the highest level of customer satisfaction through professionally developed drying ,mixing and granulating solutions. Hywell Machinery constant faith is providing perfect products to customer, excellenting service to customer !
In order to ensure quality of product, we focus on user 's requirements and control improvement and enhancement quality of products .The quality assurance mainly focus on the processes of ensuring production readiness inspection, control of raw materials and components, process control, critical parts, important parts of quality control, assembly quality control, process control testing, measurement equipment control. Pay close attention to the implementation of the quality assurance work, strictly to three inspection system of self-checking, mutual inspection, special inspection. The key point of Quality assurance is focuses on critical parts, important parts of quality control, the quality standards required by ISO9000 quality control procurement documents in order to clarify its status and acceptance of quality standards for company's re-inspections ; For critical parts and important that the key processes of identification and corresponding technical documentation, control by "the implementation of key quality control process", and complete, accurate and complete original records. Difficulties in quality assurance is a special process control, quality assurance is mainly painting, has developed a special process (painting) process documents, take the appropriate technical measures, to quality assurance.
In the production process, we pay close attention to quality control of each process. Every component, every process was strictly controlled. Enhanced the quality inspection process, the establishment of the necessary quality control point, the process by a full-time staff and quality inspector for inspection and supervision. Improved testing procedures and operating instruction.
We Invite customers to visit our company and communicate on technical requirements face to face.
Responsible for debugging the equipment according to customers' requirements of various technical data. Our engineers will train our customers about equipment features and operation key points to make sure the equipment running in the best condition.
We provide installation, debugging, maintenance, training and other services (Optional); Provide relevant technical data, equipment, software and related GMP certification materials;Set up after-sales service hotline.
Our company promises strictly operate the ISO9001 quality system certification standards and pharmaceutical equipment GMP audit requirements,promise we provide new equipment. Advanced technology,good quality. Equipment operation safe reliable, affordable, easy to maintain.
Equipment warranty period is one year, all the parts for the equipment choose well-known brand.During the warranty when equipment have problem in quality like equipment failure and damage, our company offer free maintenance or replacement.
